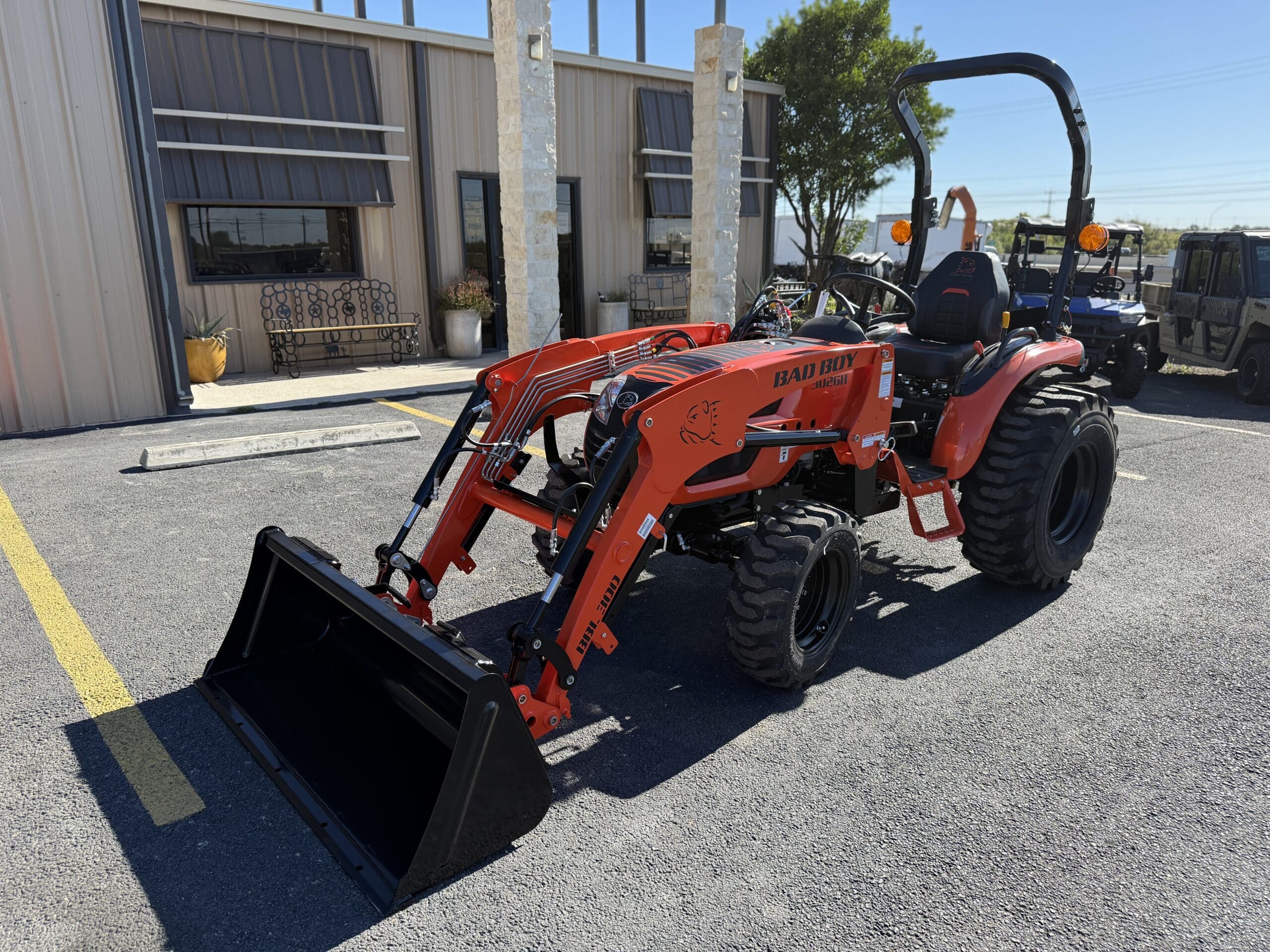

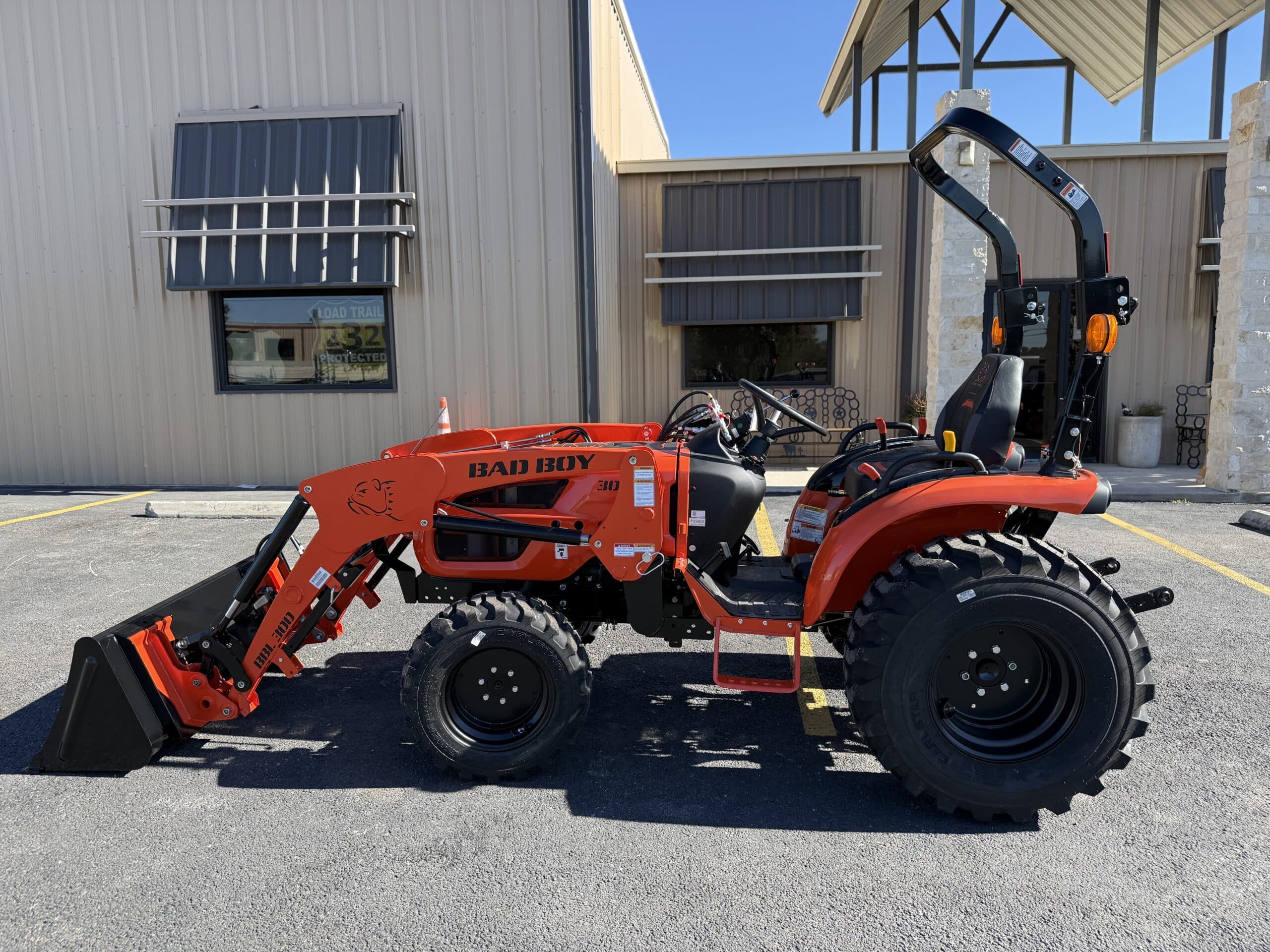

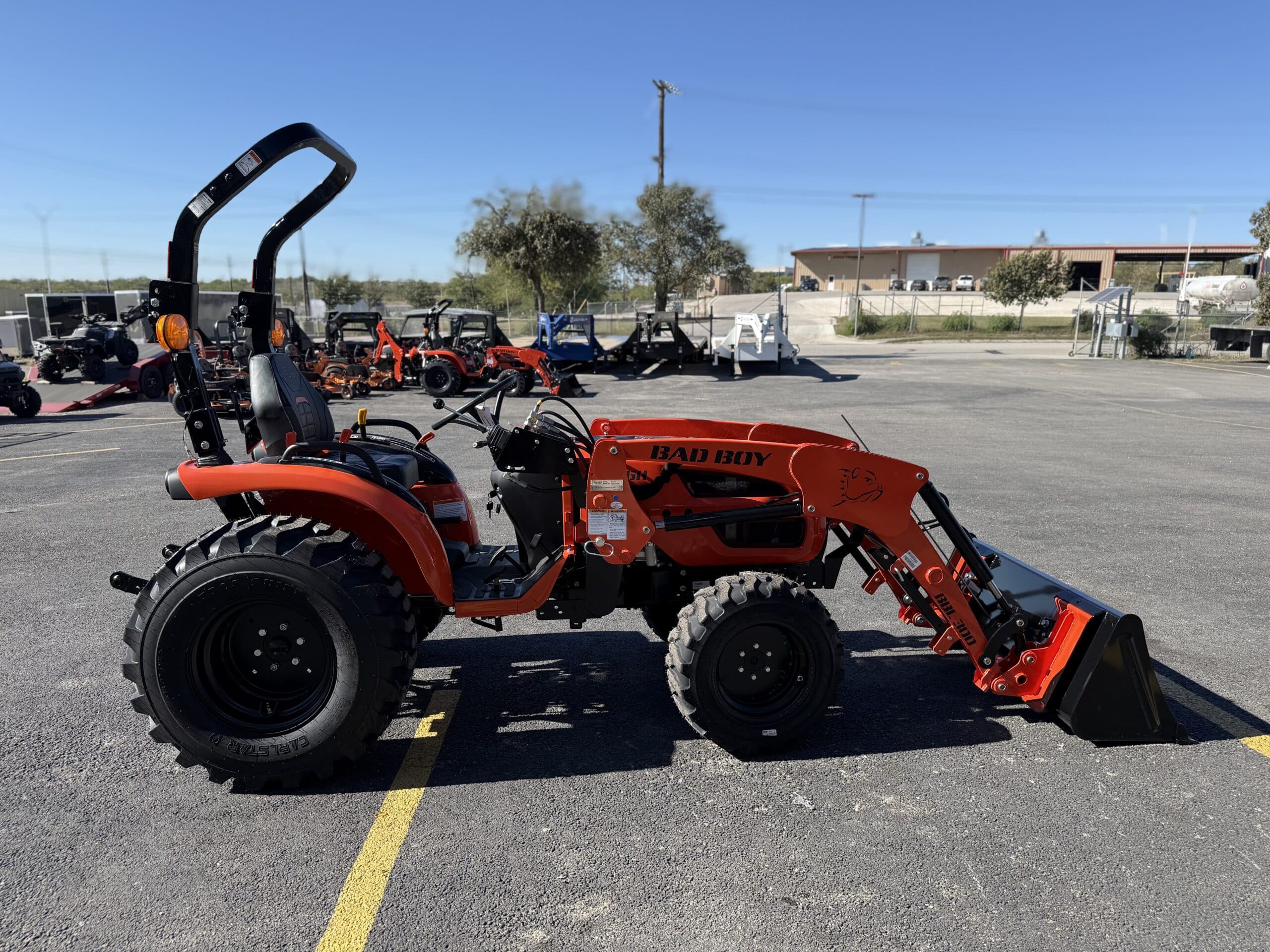

2025 Bad Boy 3026H With Industrial Tires And Loader – #BB3026HIL

The 2025 Bad Boy 3026 Compact Tractor with front loader is a versatile and durable machine designed for a variety of tasks, including landscaping, light construction, and property maintenance. This model combines robust performance with user-friendly features, making it an excellent choice for both residential and commercial applications.

🔧 Specifications

Engine:

• Type: 3-cylinder, water-cooled diesel

• Horsepower: 24 HP

• Displacement: 71.7 in³ (1,175 cc)

• Fuel Tank Capacity: 6.0 gallons (23 liters)

Transmission:

• Type: Hydrostatic (HST)

• Speeds: 3-range

• Clutch: Dry single plate

• Brakes: Wet, multi-disc

Hydraulics:

• Total Hydraulic Flow: 7.4 GPM (3.1 GPM for power steering + 4.3 GPM for implements)

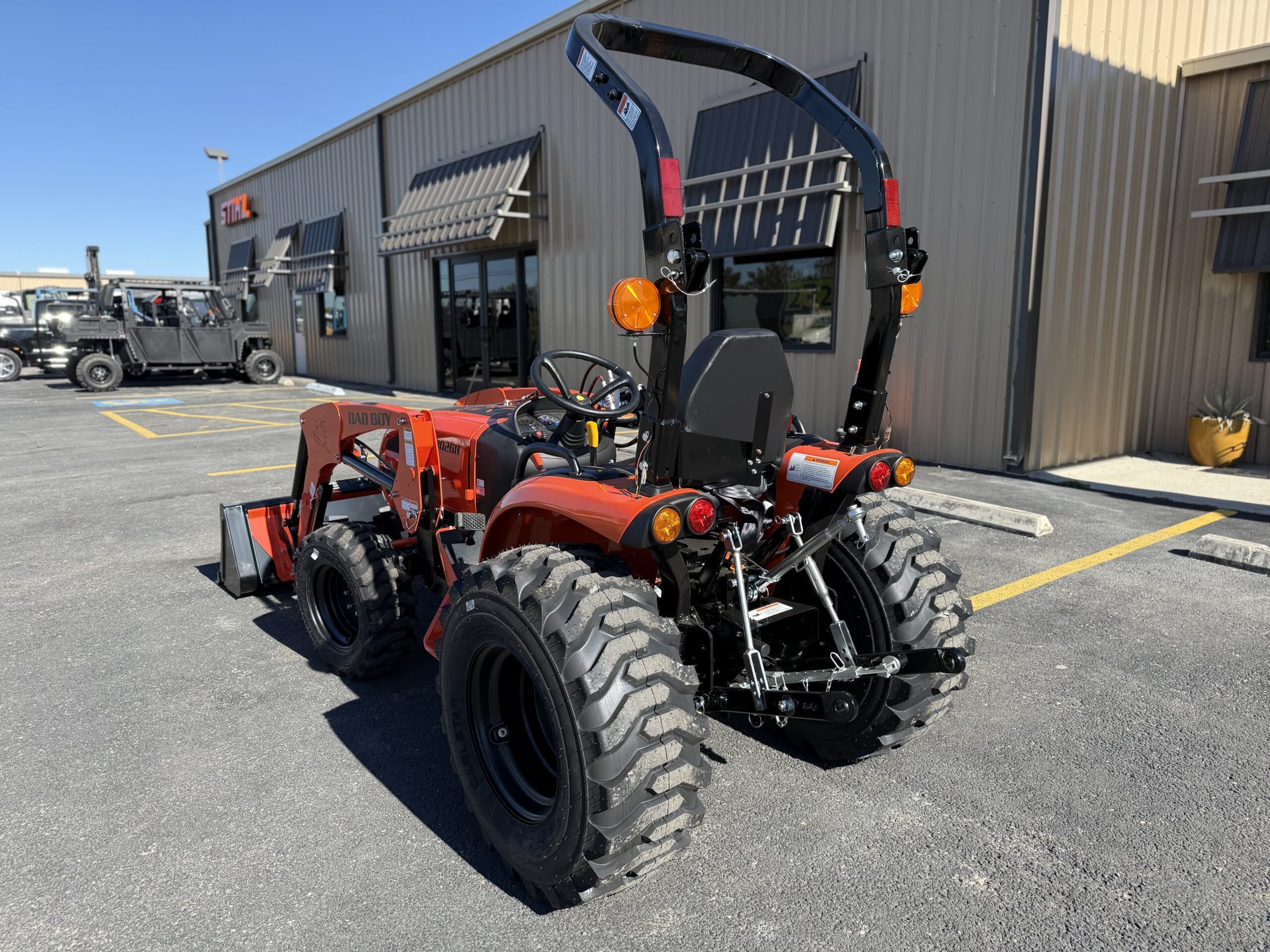

• 3-Point Hitch: Category 1

• Lift Capacity at 24″ Behind Lift Point: 974 lbs

Dimensions:

• Overall Length: 122.9 inches

• Overall Width: 53.8 inches

• Overall Height: 91.3 inches

• Wheelbase: 65.7 inches

• Ground Clearance: 16.4 inches

• Weight: 2,106 lbs

PTO:

• Type: Live

• Rear PTO Speed: 540/960 RPM

• PTO Horsepower: 18 HP

Electrical:

• Battery: 12 V, 540 CCA

• Alternator: 12 V, 50 A

Tires:

• Front: 25×8.50-14

• Rear: 14×17.5

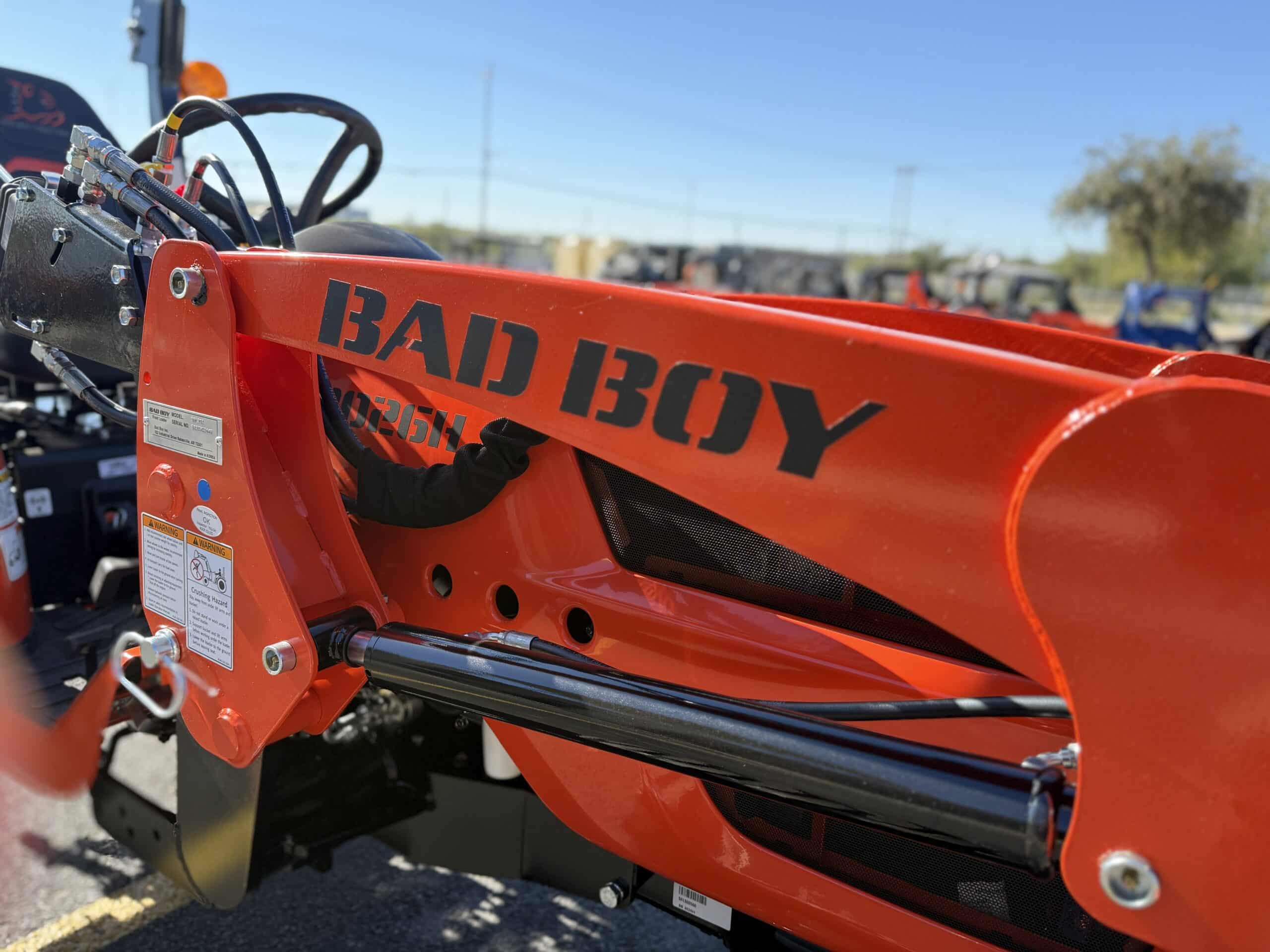

🛠️ Front Loader (Model BBL300)

• Bucket Size: 54 inches

• Maximum Lift Height: 86 inches

• Dig Depth: 4.2 inches

• Lift Capacity at Full Height (at pivot pin): 1,314 lbs

• Breakout Force: 1,960 lbs

• Shipping Weight: 654 lbs

 Features & Benefits

• Hydro Max Transmission: Automatically adjusts engine RPMs with pedal pressure, providing smooth and efficient operation.

• Selectable 4WD with Differential Lock: Enhances traction and stability, especially in challenging terrains.

• Power Steering: Offers effortless control, reducing operator fatigue.

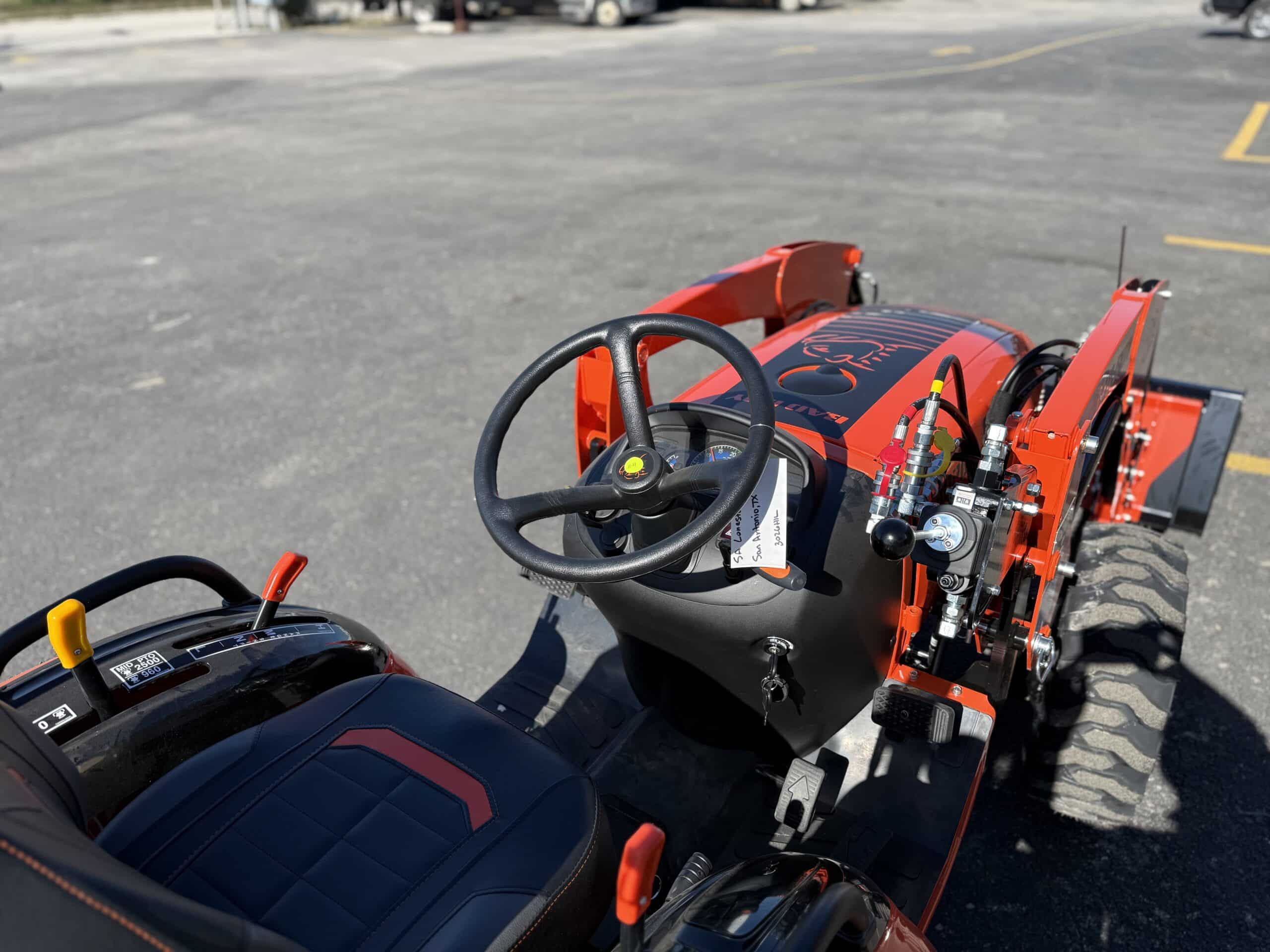

• Comfortable Operator Station: Features an adjustable seat that flips up for easy access and rear visibility during loader or backhoe operations.

• 6-Year Powertrain Warranty: Provides peace of mind with extended coverage.
