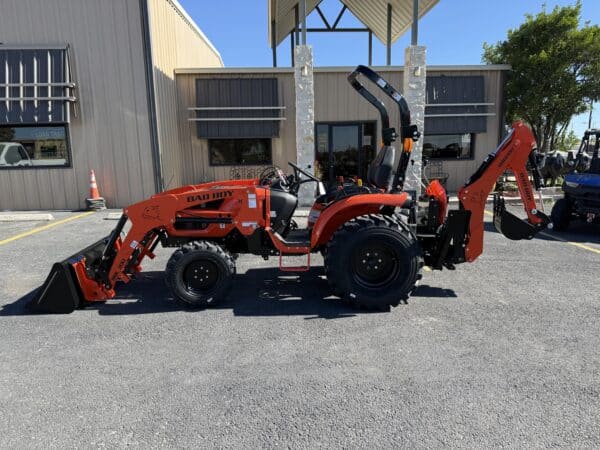

2025 Bad Boy 3026H With Industrial Tires Loader And Backhoe – #BB3026HILB

The 2025 Bad Boy 3026 Compact Tractor with front loader and backhoe is a robust, versatile machine designed for property maintenance, landscaping, small farming, and construction tasks. This model combines durability, power, and user-friendly features to handle a wide range of applications.

🔧 Key Specifications

Engine & Performance:

• Engine Type: 3-cylinder, water-cooled diesel

• Horsepower: Approximately 24–25 HP

• Displacement: 71.7 cubic inches (1,175 cc)

• Fuel Tank Capacity: 6.0 gallons (23 liters)

• PTO Horsepower: 18 HP

Transmission & Drivetrain:

• Transmission: Hydrostatic (HST) with 3-range speeds

• Clutch: Dry single plate

• Brakes: Wet, multi-disc

• Drive: Selectable 4WD with differential lock

• Turning Radius: 46°

Hydraulics:

• Total Hydraulic Flow: 7.4 GPM (3.1 for power steering + 4.3 for implements)

• 3-Point Hitch: Category 1, lift capacity of 974 lbs at 24″ behind lift point

• Rear Remote Valve: Optional (up to 1)

Dimensions & Weight:

• Overall Length: 122.9 inches

• Overall Width: 53.8 inches

• Overall Height: 91.3 inches

• Wheelbase: 65.7 inches

• Minimum Ground Clearance: 16.4 inches

• Weight: 2,106 lbs

 Attachments

Front Loader (Model BBL300):

• Bucket Size: 54 inches

• Lift Capacity: 1,314 lbs to full height at pivot pin

• Breakout Force: 1,960 lbs

• Maximum Lift Height: 88.3 inches

• Dig Depth: 4.2 inches

Backhoe (Model BBH200):

• Bucket Size: 12 inches

• Maximum Dig Depth: 76 inches

• Dig Force (Bucket): 2,050 lbs

• Swing Arc: 150°

• Reach from Pivot: 104.3 inches

• Transport Height: 70.5 inches

• Weight: 827 lbs

 Additional Features

• Power Steering: Ensures effortless control

• Cast Iron Axles: Provide durability and stability

• Hydro Max Transmission: Automatically adjusts engine RPMs with pedal pressure

• Comfortable Seat: Adjustable for optimal positioning during loader or backhoe operations

• Warranty: 6-year powertrain warranty for peace of mind
