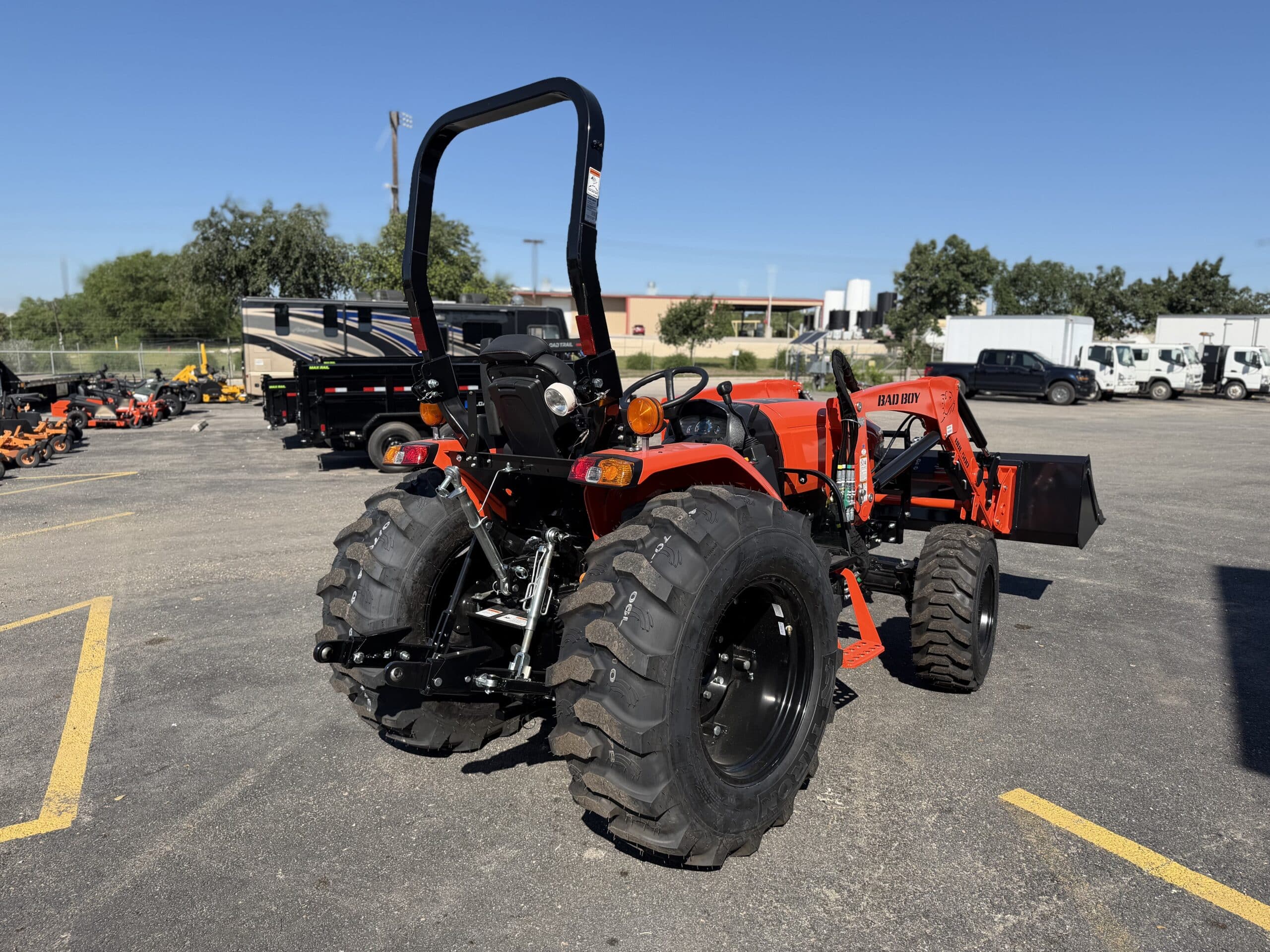

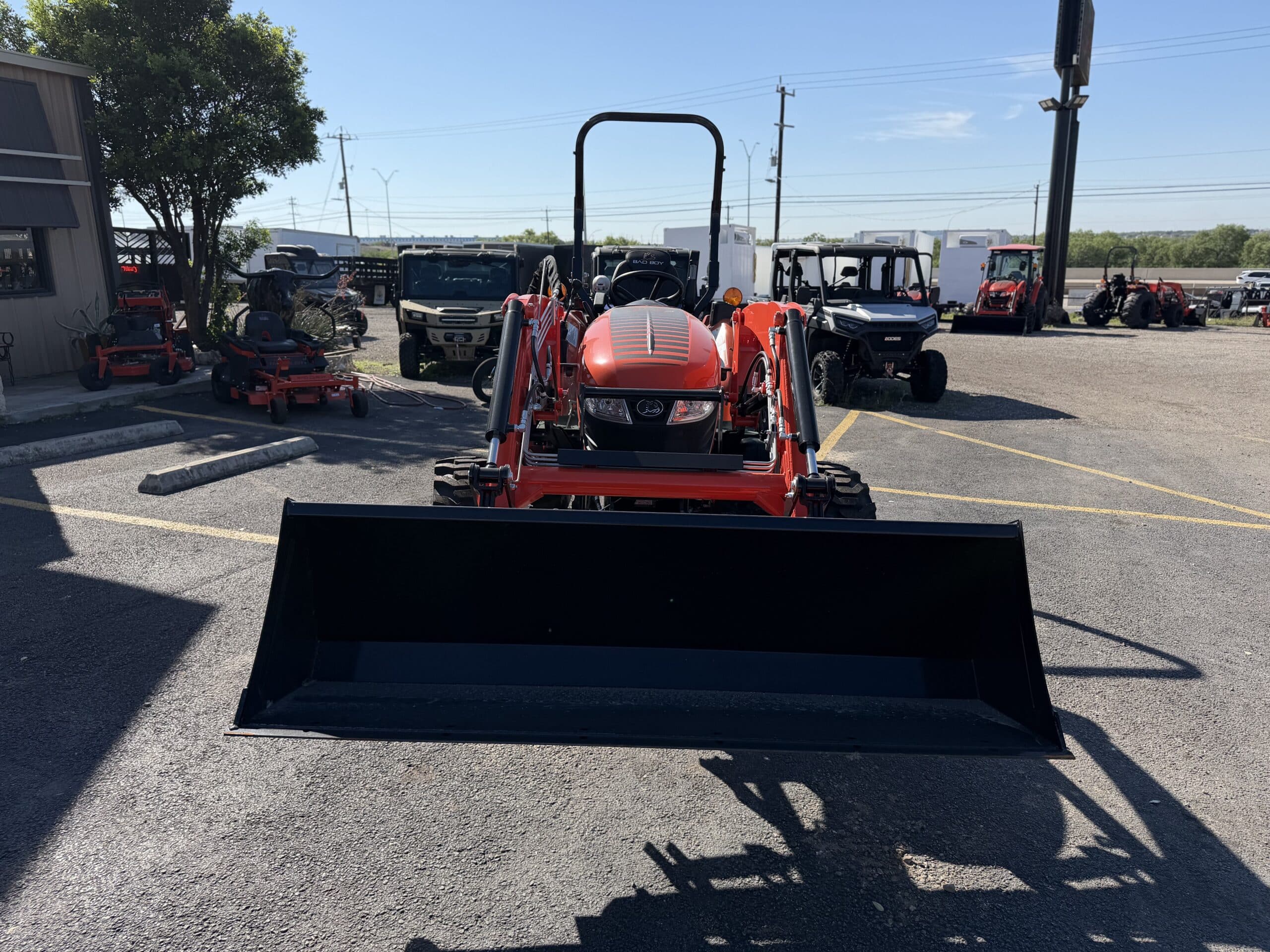

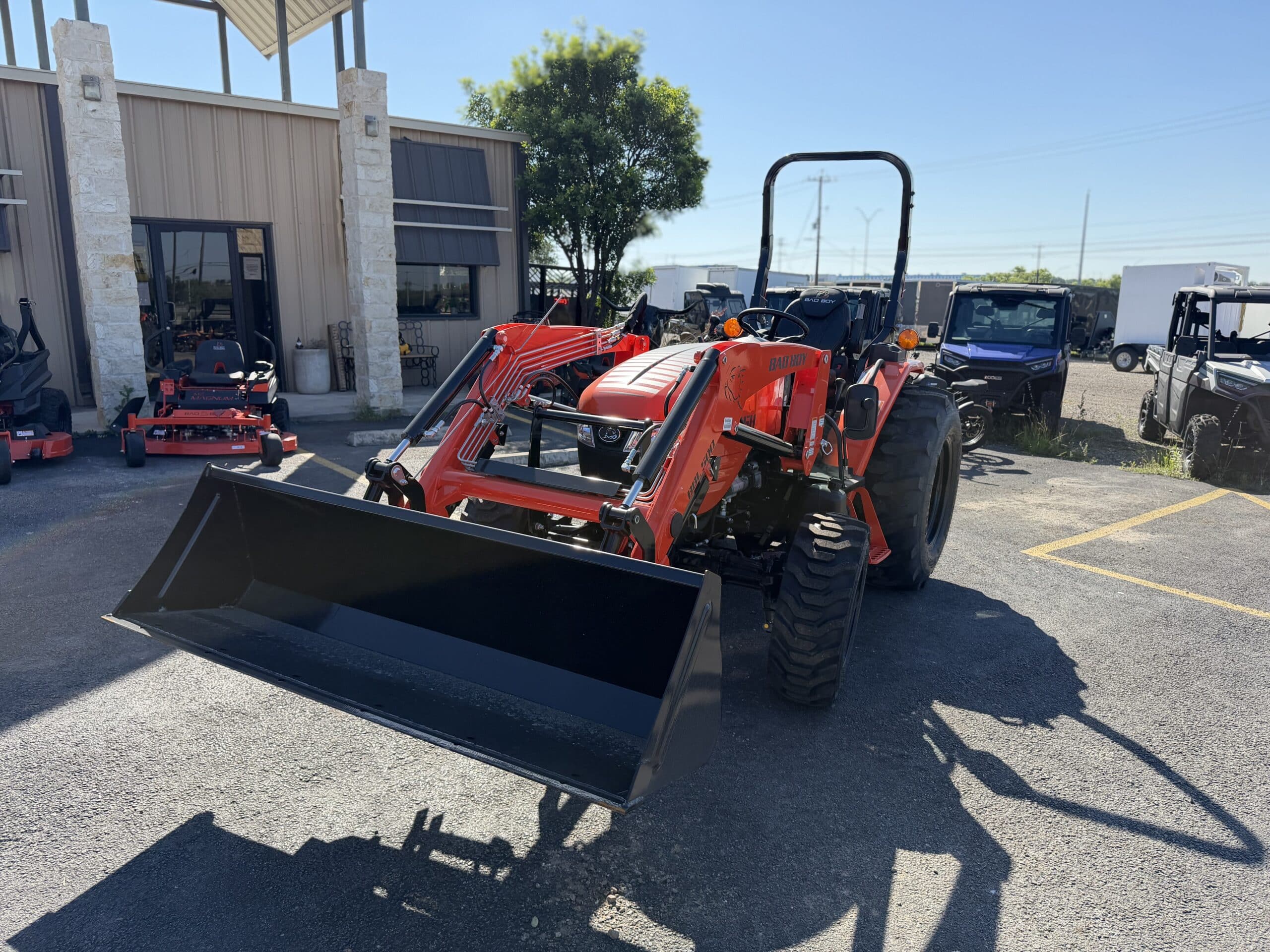

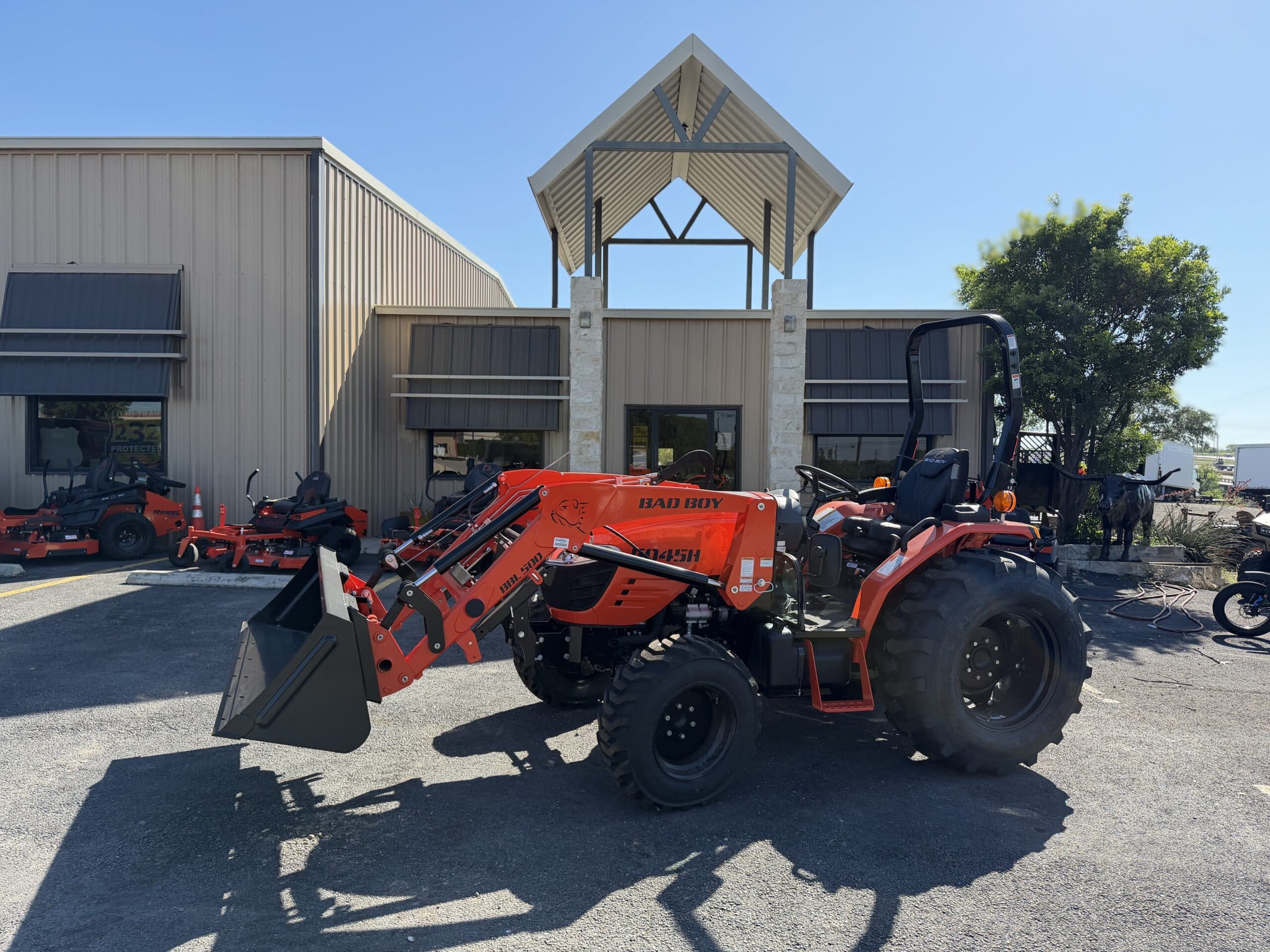

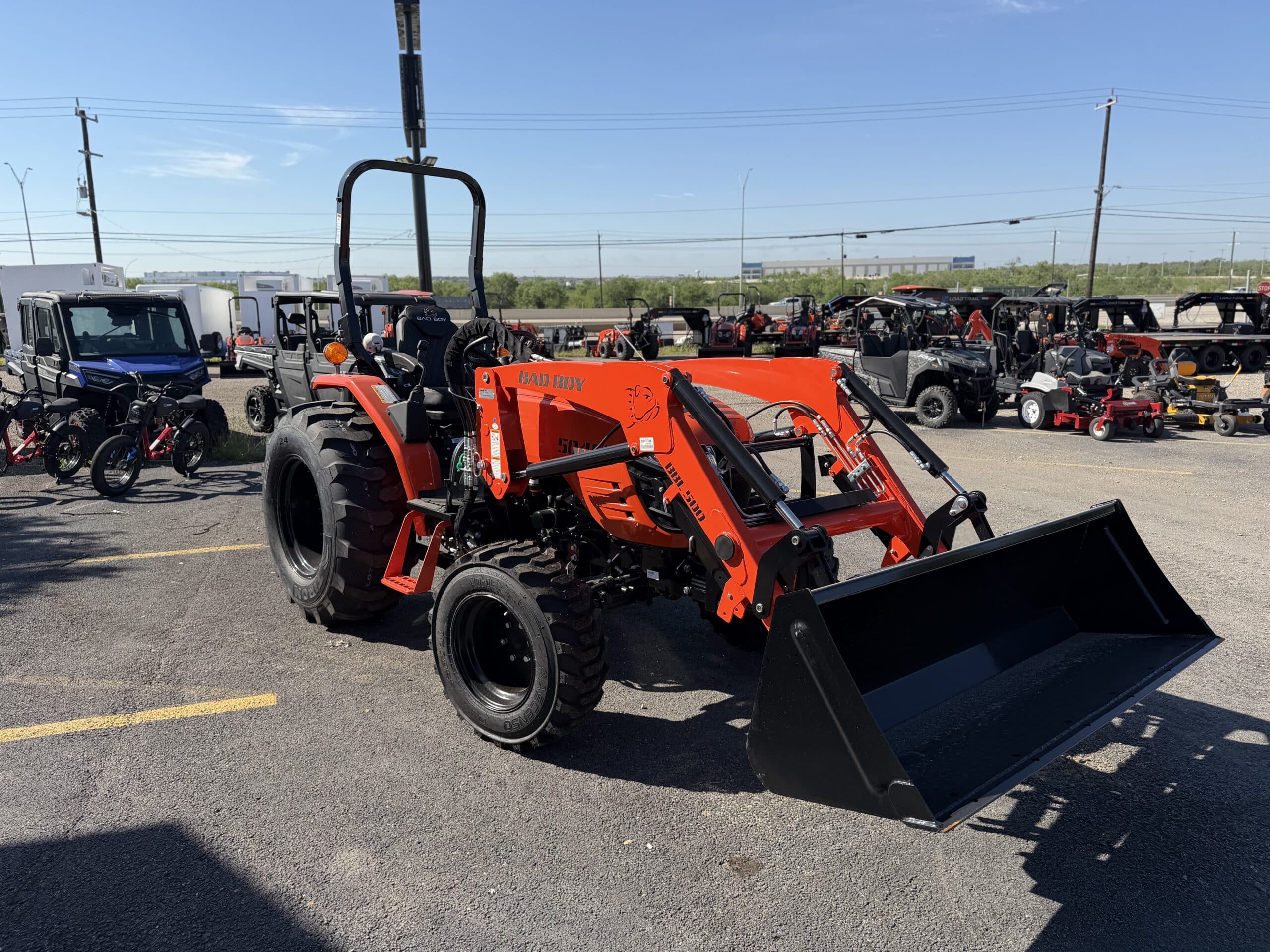

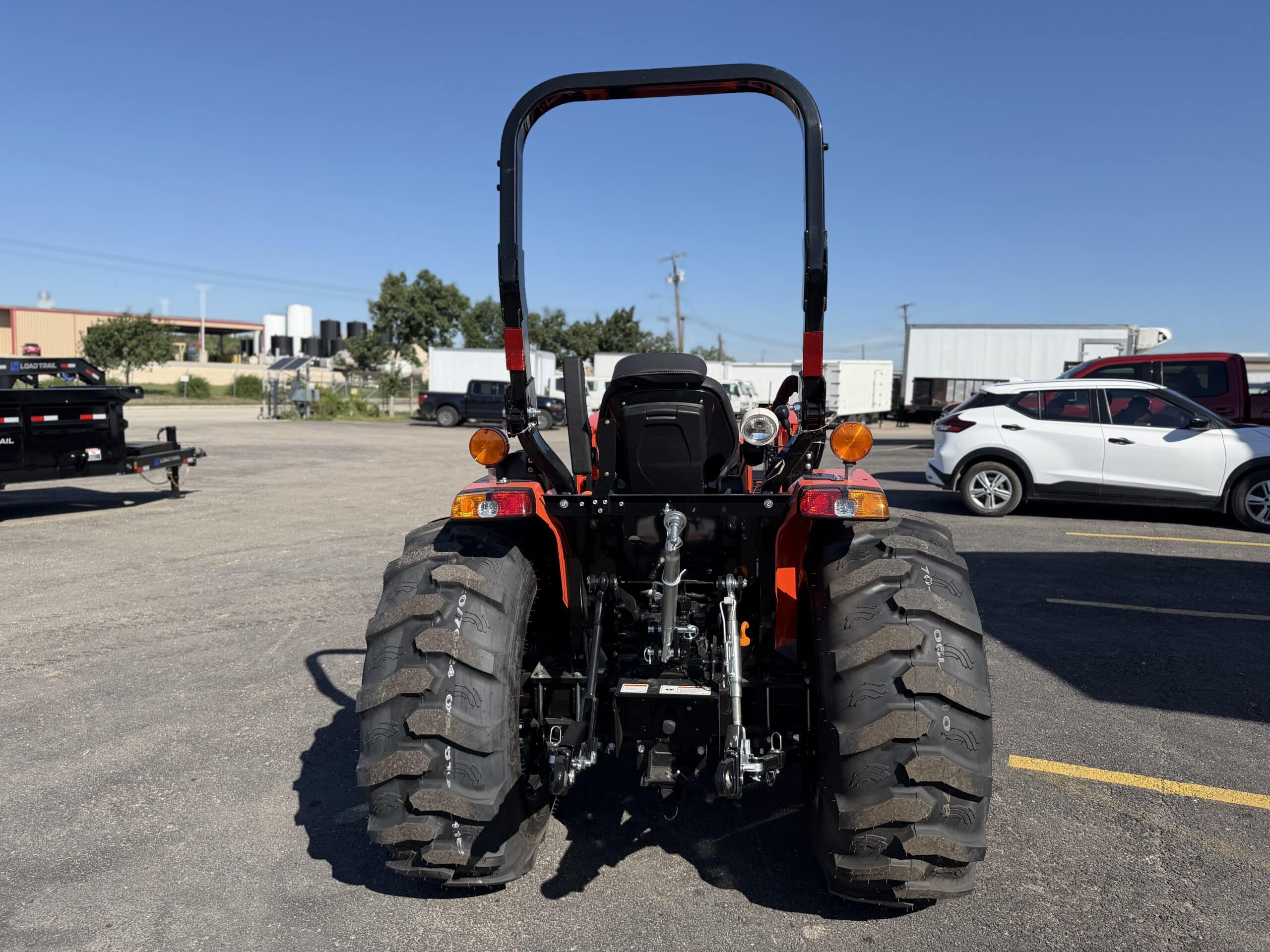

2026 Bad Boy 50 Series Tractor 5045HIL – #RH010015

Financing Price: $35,933 – 0% for 72 months (with approved credit)*

Cash Price: $32,666 or 0.99% for 84 months (with approved credit)*

*Price does not include $350 freight charge, $100 prep and fuel fee, or sales tax.

Bad Boy 5045 Tractor – Power That Commands Respect

Lift More Than Ever Before

The 5045 takes power, performance, and attitude to the next level with 2,700 lbs. Loader Lift Capacity.

A New Kind of Comfort

Combat fatigue during long workdays with our deluxe suspension seat. Feel the difference of a truly better ride.

Transmission Options

Choose between a Hydro Max Transmission or Shuttle Shift Transmission on all 50 Series models. You decide how you want to drive.

5045 Engine

MODEL: A2300N2-UTR_4

FUEL SYSTEM: WATER-COOLED DIESEL

DISPLACEMENT, IN: 139.5

NUMBER OF CYLINDERS: 4

FUEL TANK SIZE, GAL: 11.8

RATED ENGINE POWER, HP: 48

RATED SPEED, RPM: 2600

MAX PTO POWER, HP: 38.4

DPF / SCR / DOC: DPF / DOC

5045 Transmission

TYPE: 5045S/CS – SYNCHRO | 5045H/CH – HST

NUMBER OF GEARS: 5045S/CS – 16F / 16R | 5045H/CH – 4 RANGE

5045 Hydraulics

MAXIMUM TOTAL FLOW, GPM: 5045S/CS – 16.4 | 5045H/CH – 15.7

IMPLEMENT PUMP CAP, GPM: 5045S/CS – 11.4 | 5045H/CH – 10.7

STEERING PUMP CAP, GPM: 5

3P CATEGORY: 1

HITCH LIFT CAPACITY, LB: 3,306

AT 24 INCHES BEHIND LINK ENDS, LB: 2,425

5045 Dimensions

OVERALL LENGTH, IN, 3P: 127.4

OVERALL WIDTH, IN: 64.9

HEIGHT TO TOP OF ROPS, IN: 5045S/H – 98.4 | 5045CS/CH – 97

WHEELBASE, IN: 71.1

MIN. GROUND CLEARANCE, IN: 15.5

WEIGHT, LB: 5045S/H – 3,831 | 5045CS/CH – 4,349

5045 PTO

540, 540E: 584, 791

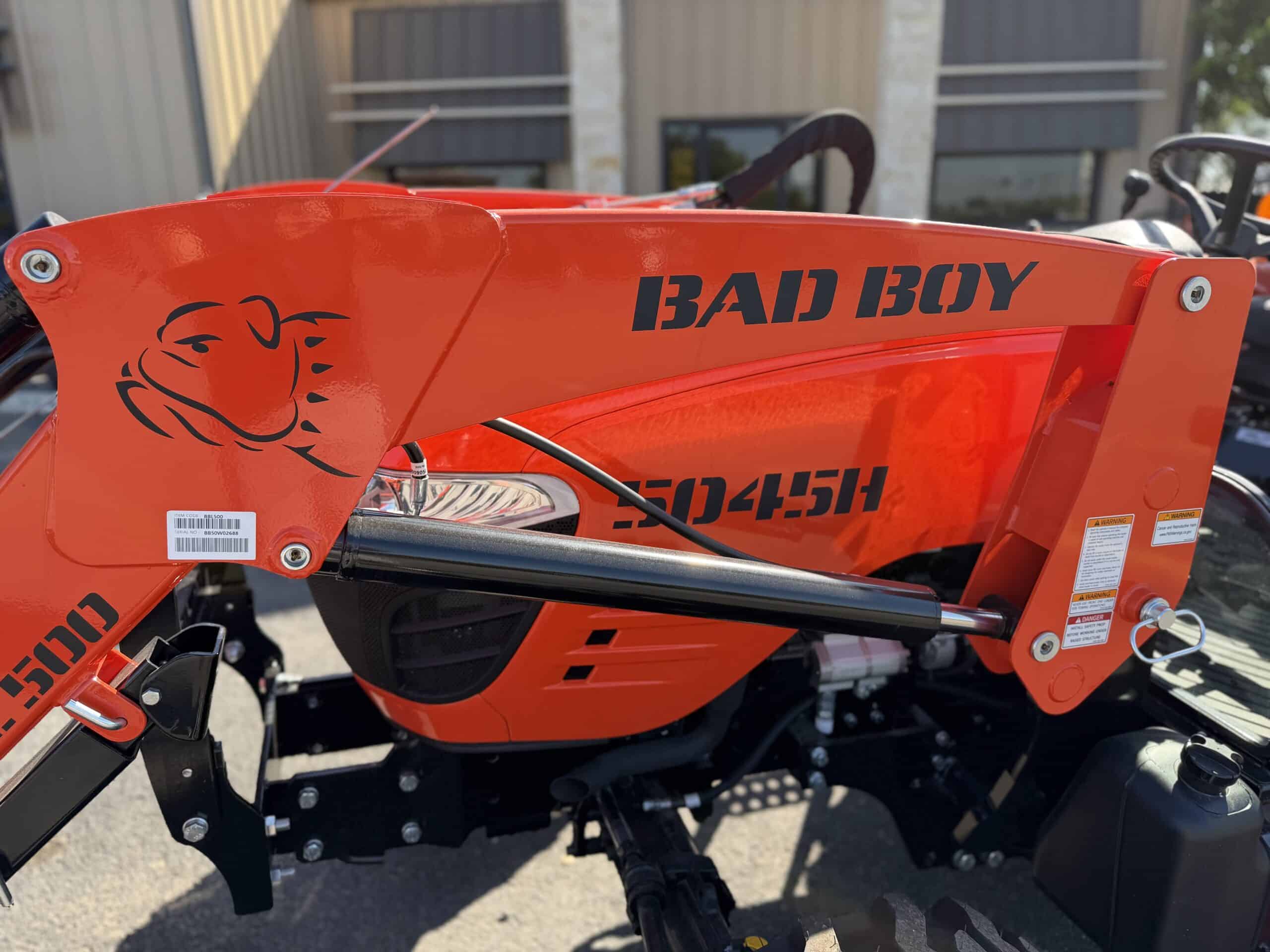

5045 Loader – Model BBL500

Standard Bucket Size (in.): 72

Maximum Lift Height (in.): 106.6

Dig Depth (in.): 3.1

Lift Capacity To Full Height At Pivot Pin (lbs.): 2,700

Breakout Force (lbs.): 3,660

Shipping Weight (lbs.): 1,075
